etiss Namespace Reference

Page Table Entry (PTE) defines the composition of Page Frame Number (PFN) and relavant flags. More...

Namespaces
	benchmark
	error
	fault
	instr
	interfaces
	internal
	mm
	plugin
	py
	string

Classes
struct	Default_Clock
class	Benchmark
class	RegisterPart
	abstract description of needed or affected register bits. More...
class	RegisterSet
	set of register parts. More...
class	CodePart
	Contains a small code snipped. More...
class	CodeSet
	A set of CodeParts. More...
class	CodeBlock
	A list of CodeSets. More...
class	CPUArchRegListenerInterface
	allows to inform plugins about changes to a register that is present in the cpu structure. More...
class	CPUArchCPUManipulation
	interface for cpu structure access. More...
class	CPUArchDefaultPlugins
	provides common basic plugins More...
class	CPUArch
	the interface to translate instructions of and processor architecture More...
class	CPUCore
	CPUCore is responsible for the simulation of a CPU core in ETISS. More...
class	Initializer
	Wrapper for the initialize and shutdown of the ETISS environment. More...
struct	pointerHash
class	FixedSizeHashMap
class	InterruptEnable
class	MappedInterruptEnable
class	InterruptHandler
	class that handles interrupt signaling and checking. More...
class	InterruptVector
	interface to set interrupt bits More...
class	MappedInterruptVector
	template implementation of an InterruptVector that uses integer variables to store interrupt bit values and to read interrupt masks. More...
class	JIT
	compiler interface for just in time compilation of generated C code More...
class	LibraryInterface
	interface class for libraries. More...
class	ToString
	Marker interface for toString() support. More...
class	SourceCodeLocation
	simple class that store source location information. More...
class	Configuration
	simple class to hold configuration options More...
class	ConfigAnnouncer
	simple class to add a configuration option to the list of known options More...
class	ObjectPool
	prealloc_inc defines the number of objects that is availabe within ObjectPools memory; default: 100 More...
class	ExpandingNativeStack
	implements a stack that may only grow (if needed) and can only contain native types since no destructor / contructor / initialization is called. More...
class	Plugin
	base plugin class that provides access to different plugin functions if present More...
class	InterruptListenerPlugin
class	TranslationPlugin
	allows to add code to the translation of instructions More...
class	CoroutinePlugin
	this plugin will be called before a block is executed. More...
class	SystemWrapperPlugin
	this plugin allows to wrap the ETISS_System interface More...
class	RegisterDevicePlugin
	RegisterDevicePlugin::changedRegister is called if a supported register has been changed. More...
class	RefCountedObject
	base refcount class More...
class	MemSegment
class	SimpleMemSystem
	simple etiss:System implementation for testing More...
class	System
	System Interface for the basic system IO operations and time synchronization. More...
class	SimpleSystem
	A simple system, that implements the etiss::System interface. More...
class	DataSheetAccurateTiming
class	BlockLink
	structure to store additional information with a function pointer to the translated code More...
class	Translation
class	VirtualStruct
	abstract representation of an module of a simulation which could be a embedded device of the cpu of an embedded device. More...
class	VSSync
	used for synchronization of the tree of virtual structs. More...
class	VirtualStructSupport
class	LLVMJIT

Typedefs
typedef void *	ModuleHandle
	Represents a module handle. Analogous to Windows this represents the module base address, not a dlopen handle! More...
typedef etiss::int32(*	ExecBlockCall) (ETISS_CPU *cpu, ETISS_System *system, void **plugin_pointers)

Enumerations
enum	InterruptType { EDGE_TRIGGERED = 1 , LEVEL_TRIGGERED }
	interrupt types supported by the default implementation More...
enum	Verbosity {   SILENT = 0 , FATALERROR = 1 , ERROR = 2 , WARNING = 3 ,   INFO = 4 , VERBOSE = 5 }
	Enumeration type for the log levels. More...
enum	endian_t : uint32_t { _LITTLE_ENDIAN_ = ETISS_LITTLE_ENDIAN , _BIG_ENDIAN_ = ETISS_BIG_ENDIAN , _UNKNOWN_ENDIAN_ = ETISS_UNKNOWN_ENDIAN }
	Enumeration type for the endianness. More...

Functions
std::set< std::string >	listCPUArchs ()
	Create a set with all identifier names of the known CPUArch plug-ins. More...
std::set< std::string >	listJITs ()
	Create a set with all identifier names of the known JIT plug-ins. More...
std::set< std::string >	listPlugins ()
	Create a set with all identifier names of the known plug-ins. More...
void	preloadLibraries ()
	Search and try to load libraries. More...
std::shared_ptr< JIT >	getJIT (std::string name, std::map< std::string, std::string > options=std::map< std::string, std::string >())
	Get a present JIT plug-in by name. More...
std::shared_ptr< CPUArch >	getCPUArch (std::string name, std::map< std::string, std::string > options=std::map< std::string, std::string >())
	Get a present CPUArch plug-in by name. More...
std::shared_ptr< Plugin >	getPlugin (std::string name, std::map< std::string, std::string > options=std::map< std::string, std::string >())
	Get a present Plugin plug-in by name. More...
bool	loadLibrary (std::string path, std::string name)
	Load a library. More...
void	addLibrary (std::shared_ptr< etiss::LibraryInterface > libInterface)
	Add a LibraryInterface to the ETISS environment. More...
std::set< std::string >	listLibraries ()
	Create a set with strings of the library names and some information appended in square brackets. More...
std::set< std::string >	listLibraryPrefixes ()
	Create a set with strings of the library names. More...
void	initialize (std::vector< std::string > &args)
	Initialize and configure ETISS. More...
std::shared_ptr< etiss::JIT >	getDefaultJIT ()
	Get the default JIT implementation. More...
void	shutdown ()
	Shutdown ETISS. More...
std::string	errorMessage (etiss::int32 code, CPUArch *arch=0)
	Get the error message for an error code for a specific CPUArch plug-in. More...
void	forceInitialization ()
	Force the initialization of ETISS. More...
std::shared_ptr< ETISS_System >	createFastMemory (size_t size)
	creates a very fast ETISS_System structure. More...
CONSTEXPR size_t	set_lsbs (size_t val)
etiss::ModuleHandle	GetModuleByName (const std::string &name="")
etiss::ModuleHandle	GetModuleByAddress (uintptr_t adr)
std::string	GetModulePath (etiss::ModuleHandle hModule)
etiss::ModuleHandle	GetCurrentModule ()
	Returns the module handle to the own dynamic library. More...
std::string	GetCurrentModulePath ()
	Returns the abolute path with filename to the own dynamic library. More...
template<typename T >
std::enable_if< std::is_base_of< etiss::ToString, T >::value, std::ostream & >::type	operator<< (std::ostream &os, const T &val)
	Implementation of the write to stream operator for objects, that implement the etiss::ToString interface. More...
Verbosity &	verbosity ()
	Get log level reference. More...
template<typename T >
std::string	toString (const T &val)
	conversion of type T to std::string. More...
std::list< std::string >	split (const std::string &str, std::function< size_t(const std::string &, size_t, size_t &)> findsplit)
std::list< std::string >	split (const std::string &str, char splitchar)
std::list< std::string >	split (const std::string &str, const std::string &splitstring)
template<typename T , typename T2 , typename... O>
std::string	toString (const T &val, const T2 &val2, const O &... others)
	conversion of type T to std::string. More...
std::string	toString (const Verbosity &val)
	prints string representation of verbosity level More...

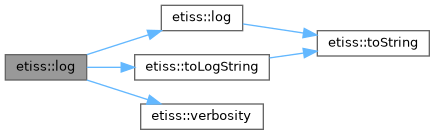

void	log (Verbosity level, std::string msg)
	write log message at the given level. More...
void	logC (Verbosity level, std::function< std::string(void)> msgGen)
	write log message at the given level. More...
template<typename T >
std::string	toLogString (const T &t)
	Format the string representation of a value for the log output. More...
template<typename T1 , typename T2 , typename... O>
std::string	toLogString (const T1 &t1, const T2 &t2, const O &... os)
	Format a list of arguments for the log output. More...
template<typename T , typename... O>
void	log (Verbosity level, std::string msg, const T &t, const O &... args)
	additional objects will be converted to a string with toString and are added to the message More...
std::vector< std::string >	parseCommands (const std::string &cmdline)
Configuration &	cfg (const std::string &cfgName)
	Get reference of the global ETISS configuration object. More...
Configuration &	cfg ()
std::string	installDir ()
	Get ETISS installation directory. More...
std::string	jitFiles ()
	Get ETISS JIT files path. More...
std::vector< std::string >	jitExtHeaders ()
	Get ETISS JIT external headers. More...
std::vector< std::string >	jitExtLibraries ()
	Get ETISS JIT external libraries. More...
std::vector< std::string >	jitExtHeaderPaths ()
	Get ETISS JIT external path. More...
std::vector< std::string >	jitExtLibPaths ()
	Get ETISS JIT external path. More...
template<>
std::string	Configuration::get< std::string > (const std::string &key, std::string default_, bool *default_used)
endian_t	getEndianness ()
	evaluates the endianness of the current build as a constexpr. More...
template<typename T >
std::enable_if< std::is_base_of< etiss::RefCountedObject< ObjectPool< T > >, T >::value, bool >::type	decRef (T *ptr)
template<typename T , typename allocatorT >
std::enable_if< std::is_base_of< etiss::RefCountedObject< allocatorT >, T >::value, bool >::type	helper_decRef (T *ptr)
template<typename T , typename allocatorT >
std::enable_if< std::is_base_of< etiss::RefCountedObject< allocatorT >, T >::value, void >::type	helper_incRef (T *ptr)
template<typename T , typename allocatorT >
std::enable_if< std::is_base_of< etiss::RefCountedObject< allocatorT >, T >::value, allocatorT *& >::type	helper_allocator_ptr_ref (T *ptr)
template<typename T >
void	incRef (T *ptr)
template<typename T >
std::enable_if< std::is_base_of< etiss::RefCountedObject< void >, T >::value, bool >::type	decRef (T *ptr)
std::shared_ptr< ETISS_System >	wrap (etiss::System *sys)
	wraps a etiss::System in a ETISS_System structure. More...
void	copy (VirtualStruct &dst, VirtualStruct &src, std::list< std::shared_ptr< VirtualStruct::Field >> &dst_notPresent, std::list< std::shared_ptr< VirtualStruct::Field >> &dst_notWriteable, std::list< std::shared_ptr< VirtualStruct::Field >> dst_unknown, bool pretend=false, std::list< std::shared_ptr< VirtualStruct::Field >> *src_private=0, std::list< std::shared_ptr< VirtualStruct::Field >> *dst_private=0)
	copies all fields with the same name from the source to the destination structure. More...
static void	parseName (const char *cname, const int baseflags, unsigned &flags, std::string &name_)
std::vector< std::string > &	split (const std::string &s, char delim, std::vector< std::string > &elems)
etiss::int32	dbg_print (etiss::uint32 reg)
template<unsigned len, unsigned pos>
static std::enable_if< len==pos, void >::type	call_initCodeBlock (etiss::TranslationPlugin **ca, CodeBlock &cb)
template<unsigned len, unsigned pos>
static std::enable_if< len !=pos, void >::type	call_initCodeBlock (etiss::TranslationPlugin **ca, CodeBlock &cb)
template<unsigned len, unsigned pos>
static std::enable_if< len==pos, void >::type	call_finalizeCodeBlock (etiss::TranslationPlugin **ca, CodeBlock &cb)
template<unsigned len, unsigned pos>
static std::enable_if< len !=pos, void >::type	call_finalizeCodeBlock (etiss::TranslationPlugin **ca, CodeBlock &cb)
static void	call_initCodeBlock_ul (etiss::TranslationPlugin **ca, CodeBlock &cb)
static void	call_finalizeCodeBlock_ul (etiss::TranslationPlugin **ca, CodeBlock &cb)
static uint64_t	genTranslationId ()

Variables
static const ModuleHandle	NullModuleHandle = nullptr
	Represents a null value for hl::ModuleHandle. More...

Detailed Description

Page Table Entry (PTE) defines the composition of Page Frame Number (PFN) and relavant flags.

Singleton to represent specific PTE format, every PTE uses this singleton to parse raw PTE value into PPN and protection flags, read/write PPN or flags.

Copyright

Copyright 2018 Infineon Technologies AG

This file is part of ETISS tool, see https://github.com/tum-ei-eda/etiss.

The initial version of this software has been created with the funding support by the German Federal
Ministry of Education and Research (BMBF) in the project EffektiV under grant 01IS13022.

Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and
the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions
and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse
or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.

Author

Aote Jin aote..nosp@m.jin@.nosp@m.tum.d.nosp@m.e, Chair of Electronic Design Automation, TUM

Date

June 24, 2018

Version

0.1

Copyright

Copyright 2018 Infineon Technologies AG

This file is part of ETISS tool, see https://github.com/tum-ei-eda/etiss.

The initial version of this software has been created with the funding support by the German Federal
Ministry of Education and Research (BMBF) in the project EffektiV under grant 01IS13022.

Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and
the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions
and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse
or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.

Author

Aote Jin aote..nosp@m.jin@.nosp@m.tum.d.nosp@m.e, Chair of Electronic Design Automation, TUM

Date

June 24, 2018

Version

0.1

A PTE contains page frame number (pfn) and protection flags. PTEFormat is used to record bit field of PFR and flags in PTE raw value.PFN or flags could be read/write with help of PTEFormat, which could be built up by its builder utility.

Typedef Documentation

ExecBlockCall

typedef etiss::int32(* etiss::ExecBlockCall) (ETISS_CPU *cpu, ETISS_System *system, void **plugin_pointers)

Definition at line 57 of file Translation.h.

ModuleHandle

typedef void* etiss::ModuleHandle

Represents a module handle. Analogous to Windows this represents the module base address, not a dlopen handle!

Definition at line 31 of file Memory.h.

Enumeration Type Documentation

endian_t

enum etiss::endian_t : uint32_t

Enumeration type for the endianness.

Enumerator
_LITTLE_ENDIAN_
_BIG_ENDIAN_
_UNKNOWN_ENDIAN_

Definition at line 524 of file Misc.h.

InterruptType

enum etiss::InterruptType

interrupt types supported by the default implementation

Enumerator
EDGE_TRIGGERED
LEVEL_TRIGGERED

Definition at line 73 of file InterruptHandler.h.

Verbosity

enum etiss::Verbosity

Enumeration type for the log levels.

This is enumeration type for the log levels supported by the ETISS logging framework.

Enumerator
SILENT
FATALERROR
ERROR
WARNING
INFO
VERBOSE

Definition at line 123 of file Misc.h.

Function Documentation

call_finalizeCodeBlock() [1/2]

template<unsigned len, unsigned pos>

static std::enable_if<len == pos, void>::type etiss::call_finalizeCodeBlock ( etiss::TranslationPlugin **  ca, CodeBlock &  cb  )

static

Definition at line 79 of file Translation.cpp.

call_finalizeCodeBlock() [2/2]

template<unsigned len, unsigned pos>

static std::enable_if<len != pos, void>::type etiss::call_finalizeCodeBlock ( etiss::TranslationPlugin **  ca, CodeBlock &  cb  )

static

Definition at line 85 of file Translation.cpp.

References etiss::TranslationPlugin::finalizeCodeBlock().

Here is the call graph for this function:

call_finalizeCodeBlock_ul()

static void etiss::call_finalizeCodeBlock_ul ( etiss::TranslationPlugin **  ca, CodeBlock &  cb  )

static

Definition at line 100 of file Translation.cpp.

References etiss::TranslationPlugin::finalizeCodeBlock().

Referenced by etiss::Translation::init().

Here is the call graph for this function:

Here is the caller graph for this function:

call_initCodeBlock() [1/2]

template<unsigned len, unsigned pos>

static std::enable_if<len == pos, void>::type etiss::call_initCodeBlock ( etiss::TranslationPlugin **  ca, CodeBlock &  cb  )

static

Definition at line 67 of file Translation.cpp.

call_initCodeBlock() [2/2]

template<unsigned len, unsigned pos>

static std::enable_if<len != pos, void>::type etiss::call_initCodeBlock ( etiss::TranslationPlugin **  ca, CodeBlock &  cb  )

static

Definition at line 72 of file Translation.cpp.

References etiss::TranslationPlugin::initCodeBlock().

Here is the call graph for this function:

call_initCodeBlock_ul()

static void etiss::call_initCodeBlock_ul ( etiss::TranslationPlugin **  ca, CodeBlock &  cb  )

static

Definition at line 92 of file Translation.cpp.

References etiss::TranslationPlugin::initCodeBlock().

Referenced by etiss::Translation::init().

Here is the call graph for this function:

Here is the caller graph for this function:

cfg() [1/2]

etiss::Configuration & etiss::cfg

(

)

Definition at line 577 of file Misc.cpp.

References cfg().

Here is the call graph for this function:

cfg() [2/2]

etiss::Configuration & etiss::cfg

(

const std::string &

cfgName

)

Get reference of the global ETISS configuration object.

Definition at line 560 of file Misc.cpp.

References etiss_cfg_inConstructor, INFO, log(), and WARNING.

Referenced by cfg(), etiss::ConfigAnnouncer::ConfigAnnouncer(), etiss_initialize(), etiss_loadIniConfigs(), etiss_semihost_enabled(), etiss::CPUCore::execute(), etiss::Configuration::get(), etiss::Translation::getBlock(), etiss::CPUArch::getIncludePath(), RV32IMACFDArch::initInstrSet(), RV64IMACFDArch::initInstrSet(), jitExtHeaderPaths(), jitExtHeaders(), jitExtLibPaths(), jitExtLibraries(), etiss::Configuration::listFullConfiguration(), etiss::SimpleMemSystem::load_elf(), etiss::SimpleMemSystem::load_segments(), etiss::Initializer::loadIniJIT(), etiss::Initializer::loadIniPlugins(), main(), preloadLibraries(), etiss::Configuration::set(), etiss::Configuration::set_cmd_line_boost(), etiss::SimpleMemSystem::SimpleMemSystem(), and etiss::Translation::translateBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

Configuration::get< std::string >()

template<>

std::string etiss::Configuration::get< std::string >	(	const std::string &	key,
		std::string	default_,
		bool *	default_used
	)

Definition at line 255 of file Misc.cpp.

copy()

void etiss::copy	(	VirtualStruct &	dst,
		VirtualStruct &	src,
		std::list< std::shared_ptr< VirtualStruct::Field >> &	dst_notPresent,
		std::list< std::shared_ptr< VirtualStruct::Field >> &	dst_notWriteable,
		std::list< std::shared_ptr< VirtualStruct::Field >>	dst_unknown,
		bool	pretend = false,
		std::list< std::shared_ptr< VirtualStruct::Field >> *	src_private = 0,
		std::list< std::shared_ptr< VirtualStruct::Field >> *	dst_private = 0
	)

copies all fields with the same name from the source to the destination structure.

if a source field is not present in the destination then the field will be added to dst_notPresent if a field is not writeable in the destination then the field will be added to dst_notWriteable if a destination field is not present in the source then the field will be added to dst_unknown if src_private and/or dst_private is passed then they will contain a list of private fields of the source/destination which are ignored by the copy function.

Parameters

pretend

if true then no copy operation will be performed (only the lists will be filled)

Definition at line 534 of file VirtualStruct.cpp.

References etiss::VirtualStruct::findName(), etiss::VirtualStruct::foreachField(), etiss::VirtualStruct::Field::P, and etiss::VirtualStruct::Field::W.

Referenced by pugi::xpath_variable::set().

Here is the call graph for this function:

Here is the caller graph for this function:

createFastMemory()

std::shared_ptr< ETISS_System > etiss::createFastMemory

(

size_t

size

)

creates a very fast ETISS_System structure.

segmentation faults are possible if the read access happens outside of the range 0 to size-1. writing to areas that have been translated results in undefined behaviour. instruction write access return etiss::RETURNCODE::IBUS_WRITE_ERROR. time synchronization is disabled but may be changed if a custom handle is not required;

Definition at line 84 of file FastMemory.cpp.

References system_call_dbg_read(), system_call_dbg_write(), system_call_dread(), system_call_dwrite(), system_call_iread(), system_call_iwrite(), system_call_syncTime(), and uint8_t.

Here is the call graph for this function:

dbg_print()

etiss::int32 etiss::dbg_print

(

etiss::uint32

reg

)

Definition at line 179 of file System.cpp.

decRef() [1/2]

template<typename T >

std::enable_if<std::is_base_of<etiss::RefCountedObject<ObjectPool<T> >, T>::value, bool>::type etiss::decRef

(

T *

ptr

)

Definition at line 217 of file ObjectPool.h.

References etiss::ObjectPool< T, prealloc_inc >::deallocate(), and etiss::ObjectPool< T, prealloc_inc >::destroy().

Here is the call graph for this function:

decRef() [2/2]

template<typename T >

std::enable_if<std::is_base_of<etiss::RefCountedObject<void>, T>::value, bool>::type etiss::decRef

(

T *

ptr

)

Definition at line 136 of file RefCountedObject.h.

References unlikely.

genTranslationId()

static uint64_t etiss::genTranslationId ( )

static

Definition at line 109 of file Translation.cpp.

References uint64_t.

GetCurrentModule()

etiss::ModuleHandle etiss::GetCurrentModule

(

)

Returns the module handle to the own dynamic library.

Definition at line 106 of file Memory.cpp.

References GetModuleByAddress().

Referenced by GetCurrentModulePath().

Here is the call graph for this function:

Here is the caller graph for this function:

GetCurrentModulePath()

std::string etiss::GetCurrentModulePath

(

)

Returns the abolute path with filename to the own dynamic library.

Definition at line 117 of file Memory.cpp.

References GetCurrentModule(), and GetModulePath().

Referenced by installDir().

Here is the call graph for this function:

Here is the caller graph for this function:

getEndianness()

endian_t etiss::getEndianness ( )

inline

evaluates the endianness of the current build as a constexpr.

Todo:

test on big endian machine

Definition at line 542 of file Misc.h.

References _BIG_ENDIAN_, _LITTLE_ENDIAN_, and _UNKNOWN_ENDIAN_.

Referenced by etiss::instr::Buffer::recoverFromEndianness().

Here is the caller graph for this function:

GetModuleByAddress()

etiss::ModuleHandle etiss::GetModuleByAddress

(

uintptr_t

adr

)

Definition at line 85 of file Memory.cpp.

References get_metrics::adr.

Referenced by GetCurrentModule().

Here is the caller graph for this function:

GetModuleByName()

etiss::ModuleHandle etiss::GetModuleByName

(

const std::string &

name = ""

)

Definition at line 56 of file Memory.cpp.

References NULL, and NullModuleHandle.

GetModulePath()

std::string etiss::GetModulePath

(

etiss::ModuleHandle

hModule

)

Definition at line 92 of file Memory.cpp.

Referenced by GetCurrentModulePath().

Here is the caller graph for this function:

helper_allocator_ptr_ref()

template<typename T , typename allocatorT >

std::enable_if< std::is_base_of< etiss::RefCountedObject< allocatorT >, T >::value, allocatorT *& >::type etiss::helper_allocator_ptr_ref

(

T *

ptr

)

Definition at line 122 of file RefCountedObject.h.

helper_decRef()

template<typename T , typename allocatorT >

std::enable_if< std::is_base_of< etiss::RefCountedObject< allocatorT >, T >::value, bool >::type etiss::helper_decRef

(

T *

ptr

)

Returns

true if the object has no mor references.

Definition at line 96 of file RefCountedObject.h.

References unlikely.

helper_incRef()

template<typename T , typename allocatorT >

std::enable_if< std::is_base_of< etiss::RefCountedObject< allocatorT >, T >::value, void >::type etiss::helper_incRef

(

T *

ptr

)

Definition at line 109 of file RefCountedObject.h.

References unlikely.

incRef()

template<typename T >

void etiss::incRef ( T *  ptr )

inline

Attention

for now this function mapps directly to helper_incRef. for future more complex management scenarios this might need to change

Definition at line 130 of file RefCountedObject.h.

installDir()

std::string etiss::installDir

(

)

Get ETISS installation directory.

Definition at line 583 of file Misc.cpp.

References GetCurrentModulePath().

Referenced by etiss_initialize(), jitFiles(), and preloadLibraries().

Here is the call graph for this function:

Here is the caller graph for this function:

jitExtHeaderPaths()

std::vector< std::string > etiss::jitExtHeaderPaths

(

)

Get ETISS JIT external path.

Definition at line 611 of file Misc.cpp.

References cfg(), etiss::Configuration::get(), split(), and etiss::fault::x.

Referenced by etiss::Translation::getBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

jitExtHeaders()

std::vector< std::string > etiss::jitExtHeaders

(

)

Get ETISS JIT external headers.

Definition at line 597 of file Misc.cpp.

References cfg(), etiss::Configuration::get(), split(), and etiss::fault::x.

Referenced by etiss::Translation::getBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

jitExtLibPaths()

std::vector< std::string > etiss::jitExtLibPaths

(

)

Get ETISS JIT external path.

Definition at line 618 of file Misc.cpp.

References cfg(), etiss::Configuration::get(), split(), and etiss::fault::x.

Referenced by etiss::Translation::getBlock(), and TCCJIT::translate().

Here is the call graph for this function:

Here is the caller graph for this function:

jitExtLibraries()

std::vector< std::string > etiss::jitExtLibraries

(

)

Get ETISS JIT external libraries.

Definition at line 604 of file Misc.cpp.

References cfg(), etiss::Configuration::get(), split(), and etiss::fault::x.

Referenced by etiss::Translation::getBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

jitFiles()

std::string etiss::jitFiles

(

)

Get ETISS JIT files path.

Definition at line 592 of file Misc.cpp.

References installDir().

Referenced by etiss::Translation::getBlock(), etiss::LLVMJIT::translate(), TCCJIT::translate(), verifyJITPragmaPack(), verifyJITSizeOf(), and etiss::plugin::SelectiveSysWrapper::wrap().

Here is the call graph for this function:

Here is the caller graph for this function:

log() [1/2]

void etiss::log	(	Verbosity	level,
		std::string	msg
	)

write log message at the given level.

if the current verbose level is lower then the message will not be printed

Definition at line 125 of file Misc.cpp.

References etiss_verbosity, FATALERROR, and toString().

Referenced by etiss::VirtualStruct::Field::_applyBitflip(), RegField_RV32IMACFD::_write(), pcField_RV32IMACFD::_write(), RegField_RV64IMACFD::_write(), pcField_RV64IMACFD::_write(), etiss::fault::Injector::acceleratedTrigger(), access_error(), etiss::fault::Action::Action(), etiss::SimpleMemSystem::add_memsegment(), etiss::instr::Instruction::addCallback(), etiss::fault::Stressor::addFault(), etiss::VirtualStruct::addField(), etiss::CPUCore::addPlugin(), etiss::DataSheetAccurateTiming::addRule(), etiss::instr::InstructionDefinition::addTo(), etiss::instr::InstructionGroup::addTo(), etiss::fault::Injector::addTrigger(), etiss::VirtualStruct::allocateFromC(), cfg(), etiss::mm::PTE::ClearFlagByName(), etiss::instr::VariableInstructionSet::compile(), etiss::instr::InstructionSet::create(), etiss::CPUCore::create(), etiss::plugin::gdb::Server::createTCPServer(), etiss::fault::Injector::cycleAccurateCallback(), etiss::mm::dbg_write(), etiss::interfaces::VCD::declare(), etiss::plugin::dread(), etiss::mm::TLB< EntryNum >::DumpEntry(), etiss::plugin::dwrite(), etiss::fault::Trigger::ensure(), etiss_check_shutdown(), etiss_CPUCore_handleException(), etiss_initialize(), etiss_loadIniConfigs(), ETISS_SIGNAL_MMU(), ETISSINCLUDED_createPlugin(), etiss::plugin::errorInjection::BlockAccurateHandler::execute(), etiss::CPUCore::execute(), etiss::fault::Fault::Fault(), etiss::fault::Trigger::fired(), etiss::fault::Stressor::firedTrigger(), etiss::instr::InstructionSet::foreach(), etiss::fault::Injector::freeFastFieldAccessPtr(), etiss::Configuration::get(), etiss::Translation::getBlock(), etiss::mm::PTE::GetByName(), getCPUArch(), etiss::fault::InjectorAddress::getInjector(), etiss::fault::Injector::getInjectorPath(), getJIT(), getPlugin(), etiss::plugin::gdb::Server::handlePacket(), etiss::Translation::init(), etiss::mm::MMU::Init(), RV32IMACFDArch::initInstrSet(), RV64IMACFDArch::initInstrSet(), etiss::fault::Injector::Injector(), etiss::fault::InjectorAddress::InjectorAddress(), etiss::fault::Injector::instructionAccurateCallback(), InstructionSpecificAddressCallback_callback(), etiss::mm::iread(), etiss::mm::iwrite(), listCPUArchs(), listJITs(), listPlugins(), etiss::SimpleMemSystem::load_elf(), etiss::SimpleMemSystem::load_segments(), etiss::Initializer::loadIniJIT(), etiss::Initializer::loadIniPlugins(), loadLibraryList(), etiss::fault::Stressor::loadXML(), log(), logC(), etiss::plugin::Logger::Logger(), main(), etiss::MappedInterruptVector< INT >::MappedInterruptVector(), etiss::MemSegment::memInit(), etiss::MemSegment::MemSegment(), etiss::fault::Injector::needsCallbacks(), etiss::instr::OPCode::OPCode(), etiss::LibraryInterface::openSharedLibrary(), etiss::fault::InjectorAddress::operator=(), etiss::ExpandingNativeStack< T, stackallocatedsize >::operator[](), etiss::mm::page_fault_ni_(), etiss::fault::xml::parse< std::vector< etiss::fault::Fault > >(), etiss::instr::parse_i(), parseName(), etiss::ExpandingNativeStack< T, stackallocatedsize >::pop(), etiss::interfaces::Delegate::read(), etiss::instr::Buffer::recoverFromEndianness(), etiss::fault::Fault::resolveTime(), etiss::fault::Trigger::resolveTime(), RV32IMACFD_createCPUArch(), RV64IMACFD_createCPUArch(), etiss::interfaces::WishboneBus< BOOLSIG, VECTORSIG, instrBus, flipEndianess, bytewidth, VECTORSIGSTORAGETYPE >::sel2Length(), etiss::interfaces::sel_rwop(), semihostingCall(), semihostReadStructField(), etiss::Configuration::set(), etiss::Configuration::set_cmd_line_boost(), etiss::mm::PTE::SetFlagByName(), shutdown(), etiss::CPUArchRegListenerInterface::signalChangedRegisterValue(), etiss::mm::MMU::SignalMMU(), etiss::interfaces::Delegate::syncTime(), etiss::CodeBlock::toCode(), etiss::interfaces::SimpleInstructionInjector< T >::toFunction(), etiss::mm::MMU::Translate(), etiss::fault::Trigger::Trigger(), etiss::plugin::unimpl_read(), etiss::plugin::unimpl_write(), etiss::mm::PTE::Update(), etiss::interfaces::WishboneBus< BOOLSIG, VECTORSIG, instrBus, flipEndianess, bytewidth, VECTORSIGSTORAGETYPE >::update(), etiss::interfaces::VCD::update(), verifyJITPragmaPack(), verifyJITSizeOf(), etiss::interfaces::Delegate::write(), etiss::string::form_string::write(), etiss::fault::xml::write< std::vector< etiss::fault::Fault > >(), etiss::string::form_string::write_dec(), etiss::string::form_string::writet(), and etiss::VirtualStruct::~VirtualStruct().

Here is the call graph for this function:

log() [2/2]

template<typename T , typename... O>

void etiss::log	(	Verbosity	level,
		std::string	msg,
		const T &	t,
		const O &...	args
	)

additional objects will be converted to a string with toString and are added to the message

Definition at line 284 of file Misc.h.

References get_metrics::args, log(), toLogString(), and verbosity().

Here is the call graph for this function:

logC()

void etiss::logC	(	Verbosity	level,
		std::function< std::string(void)>	msgGen
	)

write log message at the given level.

if the current verbose level is lower then the mesGen function will not be called.

Definition at line 136 of file Misc.cpp.

References etiss_verbosity, and log().

Here is the call graph for this function:

operator<<()

template<typename T >

std::enable_if<std::is_base_of<etiss::ToString, T>::value, std::ostream &>::type etiss::operator<<	(	std::ostream &	os,
		const T &	val
	)

Implementation of the write to stream operator for objects, that implement the etiss::ToString interface.

Definition at line 148 of file Misc.h.

parseCommands()

std::vector< std::string > etiss::parseCommands

(

const std::string &

cmdline

)

Definition at line 144 of file Misc.cpp.

Referenced by etiss::Configuration::Configuration().

Here is the caller graph for this function:

parseName()

static void etiss::parseName ( const char *  cname, const int  baseflags, unsigned &  flags, std::string &  name_  )

static

Definition at line 48 of file CVirtualStruct.cpp.

References ETISS_SRCLOC, FATALERROR, log(), etiss::VirtualStruct::Field::P, and WARNING.

Referenced by etiss::VirtualStruct::allocateFromC().

Here is the call graph for this function:

Here is the caller graph for this function:

set_lsbs()

CONSTEXPR size_t etiss::set_lsbs

(

size_t

val

)

Definition at line 53 of file FixedSizeHashMap.h.

Referenced by etiss::FixedSizeHashMap< K, V, hashFunc, log2_buckets >::erase(), and etiss::FixedSizeHashMap< K, V, hashFunc, log2_buckets >::find().

Here is the caller graph for this function:

split() [1/4]

std::vector<std::string>& etiss::split	(	const std::string &	s,
		char	delim,
		std::vector< std::string > &	elems
	)

Definition at line 67 of file ETISSInit.cpp.

References s.

split() [2/4]

std::list<std::string> etiss::split ( const std::string &  str, char  splitchar  )

inline

Definition at line 184 of file Misc.h.

References split(), and get_metrics::str.

Here is the call graph for this function:

split() [3/4]

std::list<std::string> etiss::split ( const std::string &  str, const std::string &  splitstring  )

inline

Definition at line 192 of file Misc.h.

References split(), and get_metrics::str.

Here is the call graph for this function:

split() [4/4]

std::list< std::string > etiss::split	(	const std::string &	str,
		std::function< size_t(const std::string &, size_t, size_t &)>	findsplit
	)

Definition at line 91 of file Misc.cpp.

References get_metrics::str.

Referenced by etiss::interfaces::VCD::declare(), etiss_initialize(), jitExtHeaderPaths(), jitExtHeaders(), jitExtLibPaths(), jitExtLibraries(), loadLibraryList(), and split().

Here is the caller graph for this function:

toLogString() [1/2]

template<typename T >

std::string etiss::toLogString

(

const T &

t

)

Format the string representation of a value for the log output.

Currently toLogString only puts the result of toString() in curly brackets

Definition at line 261 of file Misc.h.

References toString().

Referenced by log(), and toLogString().

Here is the call graph for this function:

Here is the caller graph for this function:

toLogString() [2/2]

template<typename T1 , typename T2 , typename... O>

std::string etiss::toLogString	(	const T1 &	t1,
		const T2 &	t2,
		const O &...	os
	)

Format a list of arguments for the log output.

This function uses etiss::toLogString(cont T & t) convert the arguments to strings. Arguments following the first argument are added to a new line and indented by two tabs.

Definition at line 274 of file Misc.h.

References toLogString().

Here is the call graph for this function:

toString() [1/3]

template<typename T >

std::string etiss::toString

(

const T &

val

)

conversion of type T to std::string.

This implementation uses std::stringstream. This function also works if std::string or const char* T::toString() exists.

Parameters

val	Reference to the value, that shall be converted.

Returns

The string representation.

Definition at line 174 of file Misc.h.

Referenced by etiss::DataSheetAccurateTiming::addRule(), etiss::plugin::gdb::Server::createTCPServer(), etiss::CPUCore::execute(), etiss::Configuration::get(), etiss::Translation::getBlock(), etiss::DataSheetAccurateTiming::handleMatch_cycles(), etiss::Translation::init(), etiss::plugin::InstructionSpecificAddressCallback::initCodeBlock(), log(), etiss::instr::OPCode::OPCode(), etiss::interfaces::Dot::pcreateN(), etiss::Initializer::toList(), toLogString(), etiss::SourceCodeLocation::toString(), and toString().

Here is the caller graph for this function:

toString() [2/3]

template<typename T , typename T2 , typename... O>

std::string etiss::toString	(	const T &	val,
		const T2 &	val2,
		const O &...	others
	)

conversion of type T to std::string.

default implementation uses std::stringstream

Definition at line 205 of file Misc.h.

References toString().

Here is the call graph for this function:

toString() [3/3]

std::string etiss::toString

(

const Verbosity &

val

)

prints string representation of verbosity level

Definition at line 70 of file Misc.cpp.

References ERROR, FATALERROR, INFO, SILENT, VERBOSE, and WARNING.

verbosity()

Verbosity & etiss::verbosity

(

)

Get log level reference.

verbosity level variable

This function allows get the current log level of ETISS and change the log level.

Definition at line 120 of file Misc.cpp.

References etiss_verbosity.

Referenced by access_error(), etiss_initialize(), etiss_loadIniConfigs(), and log().

Here is the caller graph for this function:

wrap()

std::shared_ptr< ETISS_System > etiss::wrap

(

etiss::System *

sys

)

wraps a etiss::System in a ETISS_System structure.

See also

Definition at line 94 of file System.cpp.

References ETISS_System::dbg_read, ETISS_System::dbg_write, ETISS_System::dread, ETISS_System::dwrite, ETISS_System::handle, ETISS_System::iread, ETISS_System::iwrite, ETISS_System::syncTime, system_call_dbg_read(), system_call_dbg_write(), system_call_dread(), system_call_dwrite(), system_call_iread(), system_call_iwrite(), and system_call_syncTime().

Referenced by etiss::CPUCore::execute().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

NullModuleHandle

const ModuleHandle etiss::NullModuleHandle = nullptr

static

Represents a null value for hl::ModuleHandle.

Definition at line 34 of file Memory.h.

Referenced by GetModuleByName().
