etiss::MemoryWordManipulator< word_t > Class Template Reference

Memory word faulter class template word_t. More...

#include <MemoryManipulationSystem.h>

Inheritance diagram for etiss::MemoryWordManipulator< word_t >:

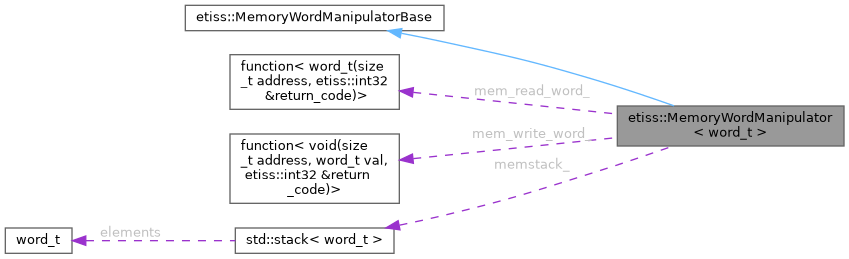

Collaboration diagram for etiss::MemoryWordManipulator< word_t >:

Public Member Functions
virtual etiss::int32	pop (size_t address)
	pop the last added element from the memory stack and write it to memory address
virtual etiss::int32	push (size_t address)
	read memory from address and push it to memory stack
virtual etiss::int32	rmw (size_t address, MemOp op, etiss::uint64 mod_val)
	read-modify-write memory word at address with mod_val by bit-wise operation op mod_val is type casted to word_t
virtual etiss::int32	rrmw (size_t dstsrc1_address, MemOp op, size_t src2_address)
	read-readmodify-write memory word at dstsrc1_address with memory word at src2_address by bit-wise operation op
	MemoryWordManipulator (std::function< word_t(size_t address, etiss::int32 &return_code)> const &mem_read_word, std::function< void(size_t address, word_t val, etiss::int32 &return_code)> const &mem_write_word)
	Constructor taking mem_read_word and mem_write_word functions for memory fault action.

Private Attributes
std::function< word_t(size_t address, etiss::int32 &return_code)>	mem_read_word_
	function to read a single word from memory
std::function< void(size_t address, word_t val, etiss::int32 &return_code)>	mem_write_word_
	function to write a single word to memory
std::stack< word_t >	memstack_ {}
	memory stack to allow read modify write manipulations to memory

Additional Inherited Members
Public Types inherited from etiss::MemoryWordManipulatorBase
typedef MM_MemOpType	mem_op_t
typedef MM_MemManipCmd	mem_manip_cmd_t
	Memory operation type code.

Detailed Description

template<typename word_t>
class etiss::MemoryWordManipulator< word_t >

Memory word faulter class template word_t.

Definition at line 72 of file MemoryManipulationSystem.h.

Constructor & Destructor Documentation

MemoryWordManipulator()

template<typename word_t >

etiss::MemoryWordManipulator< word_t >::MemoryWordManipulator	(	std::function< word_t(size_t address, etiss::int32 &return_code)> const &	mem_read_word,
		std::function< void(size_t address, word_t val, etiss::int32 &return_code)> const &	mem_write_word
	)

Constructor taking mem_read_word and mem_write_word functions for memory fault action.

Definition at line 204 of file MemoryManipulationSystem.h.

Member Function Documentation

pop()

template<typename word_t >

etiss::int32 etiss::MemoryWordManipulator< word_t >::pop ( size_t  address )

virtual

pop the last added element from the memory stack and write it to memory address

Returns

etiss::RETURNCODE encoded via MemoryManipulationSystem::dbus_access

Implements etiss::MemoryWordManipulatorBase.

Definition at line 159 of file MemoryManipulationSystem.h.

push()

template<typename word_t >

etiss::int32 etiss::MemoryWordManipulator< word_t >::push ( size_t  address )

virtual

read memory from address and push it to memory stack

Returns

etiss::RETURNCODE encoded via MemoryManipulationSystem::dbus_access

Implements etiss::MemoryWordManipulatorBase.

Definition at line 168 of file MemoryManipulationSystem.h.

rmw()

template<typename word_t >

etiss::int32 etiss::MemoryWordManipulator< word_t >::rmw ( size_t  address, MemOp  op, etiss::uint64  mod_val  )

virtual

read-modify-write memory word at address with mod_val by bit-wise operation op mod_val is type casted to word_t

Returns

etiss::RETURNCODE encoded via MemoryManipulationSystem::dbus_access

Implements etiss::MemoryWordManipulatorBase.

Definition at line 176 of file MemoryManipulationSystem.h.

rrmw()

template<typename word_t >

etiss::int32 etiss::MemoryWordManipulator< word_t >::rrmw ( size_t  dstsrc1_address, MemOp  op, size_t  src2_address  )

virtual

read-readmodify-write memory word at dstsrc1_address with memory word at src2_address by bit-wise operation op

Returns

etiss::RETURNCODE encoded via MemoryManipulationSystem::dbus_access

Implements etiss::MemoryWordManipulatorBase.

Definition at line 188 of file MemoryManipulationSystem.h.

Member Data Documentation

mem_read_word_

template<typename word_t >

std::function<word_t(size_t address, etiss::int32 &return_code)> etiss::MemoryWordManipulator< word_t >::mem_read_word_

private

function to read a single word from memory

Definition at line 75 of file MemoryManipulationSystem.h.

mem_write_word_

template<typename word_t >

std::function<void(size_t address, word_t val, etiss::int32 &return_code)> etiss::MemoryWordManipulator< word_t >::mem_write_word_

private

function to write a single word to memory

Definition at line 77 of file MemoryManipulationSystem.h.

memstack_

template<typename word_t >

std::stack<word_t> etiss::MemoryWordManipulator< word_t >::memstack_ {}

private

memory stack to allow read modify write manipulations to memory

Definition at line 79 of file MemoryManipulationSystem.h.

---

The documentation for this class was generated from the following file:

• /home/runner/work/etiss/etiss/include/etiss/IntegratedLibrary/fault/MemoryManipulationSystem.h
