a Field instance represents e.g. More...

#include <VirtualStruct.h>

Inheritance diagram for etiss::VirtualStruct::Field:

[legend]

Collaboration diagram for etiss::VirtualStruct::Field:

[legend]

Classes
class	Listener
	NOTE: etiss::CPUArch should implement support for Listeners by either using the etiss::VirtualStruct::Field instance to write to listener supported field or it should call the signalWrite() functions of a Field. More...

struct	listener_pair_compare

Public Types
enum	AccessMode { VIRTUAL , LAMBDA , PREFER_LAMBDA }
	defines how a field should perform reads/writes. More...

Public Member Functions
	Field (VirtualStruct &parent, const std::string &name, const std::string &prettyname, int flags, size_t width, size_t bitwidth=0)

	Field (VirtualStruct &parent, const std::string &name, const std::string &prettyname, int flags, size_t width, bool virtual_enabled, std::function< uint64_t()> lread, std::function< void(uint64_t)> lwrite, size_t bitwidth=0)

virtual	~Field ()

uint64_t	read () const
	function to read bits/a value from the Field.

void	write (uint64_t)
	function to write bits/a value to the Field.

bool	applyBitflip (unsigned position, uint64_t fault_id)
	function to write a bitflip to a field

bool	applyAction (const etiss::fault::Fault &f, const etiss::fault::Action &a, std::string &errormsg)
	advanced fault injection. Field must have the A flag to use this.

void	signalWrite ()
	this function should be called if the listener flag is set and the field changed without using the write() function.

Field *	setDeleteP (std::function< void(Field *)> del)

Field &	setDelete (std::function< void(Field *)> del)

bool	addListener (Listener *listener, std::shared_ptr< Listener > ref=nullptr)

void	removeListener (Listener *listener, std::shared_ptr< Listener > ref=nullptr)

Public Attributes
VirtualStruct &	parent_
	reference to parent virtual struct

const std::string	name_
	name of the field.

const std::string	prettyname_
	alternative/human readable name of the field.

int	flags_
	read write flags as specified by the static const int parameters of Field: R,W,L

const size_t	width_
	width in bytes (rounded up if neccessary)

const size_t	bitwidth_
	width in bits

const AccessMode	accessMode_

std::function< bool(unsigned position, uint64_t fault_id)>	lapplyBitflip
	if this function is set the the default implementation of applyBitflip will use it

std::function< void(Field *)>	delete_

Static Public Attributes
static const int	R = 1
	read flag

static const int	W = 2
	write flag

static const int	RW = R \| W
	flags to signal that a field supports read and write operations

static const int	L = 4
	supports listener plugins; used for etiss::RegisterDevicePlugins to determine access to a variable/field

static const int	F = 8
	supports fault injection/tracing

static const int	A = 16
	supports advanced fault injection/tracing with the applyAction function

static const int	P = 32
	private field: this flag indicates that this field is an implementation specific field that e.g.

Protected Member Functions
virtual uint64_t	_read () const
	override this function to implement reads in case of AccessMode::VIRTUAL / AccessMode::PREFER_LAMBDA

virtual void	_write (uint64_t)
	override this function to implement writes in case of AccessMode::VIRTUAL / AccessMode::PREFER_LAMBDA

virtual bool	_applyBitflip (unsigned position, uint64_t fault_id)
	override this function to implement bitflip applying to a field

virtual bool	_applyAction (const etiss::fault::Fault &f, const etiss::fault::Action &a, std::string &errormsg)
	override this function to implement advanced action handling

Protected Attributes
std::function< uint64_t()>	lread
	set this function for reads in case of AccessMode::LAMBDA / AccessMode::PREFER_LAMBDA

std::function< void(uint64_t)>	lwrite
	set this function for writes in case of AccessMode::LAMBDA / AccessMode::PREFER_LAMBDA

Private Attributes
std::set< std::pair< Listener *, std::shared_ptr< Listener > >, listener_pair_compare >	listeners

Detailed Description

a Field instance represents e.g.

a field in a structure, a variable/register in a model or anything that can be represented as a sequence of up to 64 bits

Definition at line 109 of file VirtualStruct.h.

Member Enumeration Documentation

◆ AccessMode

enum etiss::VirtualStruct::Field::AccessMode

defines how a field should perform reads/writes.

default: PREFER_LAMBDA

Enumerator
VIRTUAL	uses the virtual _read() / _write functions
LAMBDA	uses the lread,lwrite functions
PREFER_LAMBDA	tries to use the lread,lwrite functions and falls back to virtual functions

Definition at line 139 of file VirtualStruct.h.

Constructor & Destructor Documentation

◆ Field() [1/2]

etiss::VirtualStruct::Field::Field	(	VirtualStruct &	parent,
		const std::string &	name,
		const std::string &	prettyname,
		int	flags,
		size_t	width,
		size_t	bitwidth = `0`
	)

Parameters

width	width of the field in bytes. rounded up in case of bitwidth missmatch
bitwidth	width of the field in bits. if 0 then width*8 will be used for bitwidth_

Definition at line 17 of file VirtualStruct.cpp.

◆ Field() [2/2]

etiss::VirtualStruct::Field::Field	(	VirtualStruct &	parent,
		const std::string &	name,
		const std::string &	prettyname,
		int	flags,
		size_t	width,
		bool	virtual_enabled,
		std::function< uint64_t()>	lread,
		std::function< void(uint64_t)>	lwrite,
		size_t	bitwidth = `0`
	)

Definition at line 29 of file VirtualStruct.cpp.

◆ ~Field()

etiss::VirtualStruct::Field::~Field ( )

virtual

Definition at line 44 of file VirtualStruct.cpp.

Member Function Documentation

◆ _applyAction()

bool etiss::VirtualStruct::Field::_applyAction	(	const etiss::fault::Fault &	f,
		const etiss::fault::Action &	a,
		std::string &	errormsg
	)

protectedvirtual

override this function to implement advanced action handling

Definition at line 181 of file VirtualStruct.cpp.

References etiss::fault::Action::getMaskOp(), etiss::fault::Action::getMaskValue(), etiss::fault::Action::getTargetBit(), etiss::fault::Action::getType(), etiss::fault::Fault::id_, etiss::INFO, etiss::log(), and uint64_t.

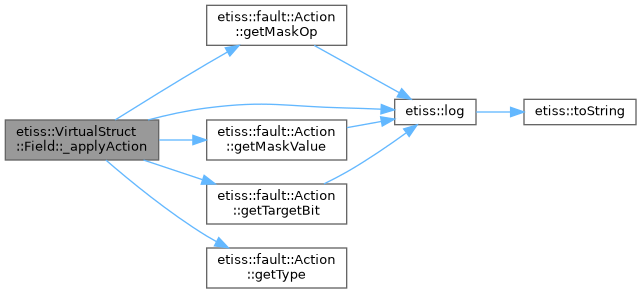

Here is the call graph for this function:

◆ _applyBitflip()

bool etiss::VirtualStruct::Field::_applyBitflip	(	unsigned	position,
		uint64_t	fault_id
	)

protectedvirtual

override this function to implement bitflip applying to a field

Definition at line 164 of file VirtualStruct.cpp.

References etiss::INFO, etiss::log(), and uint64_t.

Here is the call graph for this function:

◆ _read()

uint64_t etiss::VirtualStruct::Field::_read ( ) const

protectedvirtual

override this function to implement reads in case of AccessMode::VIRTUAL / AccessMode::PREFER_LAMBDA

Reimplemented in RegField_RV32IMACFD, pcField_RV32IMACFD, RegField_RV64IMACFD, pcField_RV64IMACFD, and etiss::VirtualStruct::FieldT< structT, retT, field >.

Definition at line 156 of file VirtualStruct.cpp.

◆ _write()

void etiss::VirtualStruct::Field::_write ( uint64_t )

protectedvirtual

override this function to implement writes in case of AccessMode::VIRTUAL / AccessMode::PREFER_LAMBDA

Reimplemented in RegField_RV32IMACFD, pcField_RV32IMACFD, RegField_RV64IMACFD, pcField_RV64IMACFD, and etiss::VirtualStruct::FieldT< structT, retT, field >.

Definition at line 160 of file VirtualStruct.cpp.

◆ addListener()

bool etiss::VirtualStruct::Field::addListener	(	Listener *	listener,
		std::shared_ptr< Listener >	ref = `nullptr`
	)

Parameters

ref	optional reference that is stored alongside the pointer

Definition at line 223 of file VirtualStruct.cpp.

References L.

◆ applyAction()

bool etiss::VirtualStruct::Field::applyAction	(	const etiss::fault::Fault &	f,
		const etiss::fault::Action &	a,
		std::string &	errormsg
	)

advanced fault injection. Field must have the A flag to use this.

Definition at line 145 of file VirtualStruct.cpp.

Referenced by etiss::VirtualStruct::applyAction().

Here is the caller graph for this function:

◆ applyBitflip()

bool etiss::VirtualStruct::Field::applyBitflip	(	unsigned	position,
		uint64_t	fault_id
	)

function to write a bitflip to a field

Definition at line 130 of file VirtualStruct.cpp.

◆ read()

uint64_t etiss::VirtualStruct::Field::read ( ) const

function to read bits/a value from the Field.

may only be called if the R flag is set. in case of less than 64 bit values the msb should be extended according to the default c++ conversion behavior. e.g. int32_t read_value = X; return (uint64_t)read_value;

Definition at line 46 of file VirtualStruct.cpp.

References uint64_t.

Referenced by etiss::plugin::VirtualStructMemory::read(), etiss::VirtualStruct::readField(), and etiss::plugin::VirtualStructMemory::write().

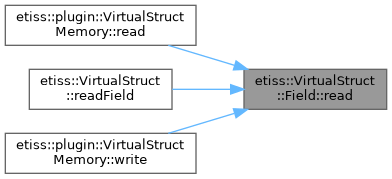

Here is the caller graph for this function:

◆ removeListener()

void etiss::VirtualStruct::Field::removeListener	(	Listener *	listener,
		std::shared_ptr< Listener >	ref = `nullptr`
	)

Parameters

ref	is ignored and can therfore be null. NEVER write new std::shared_ptr<Listener>(YOURPOINTER) after a shared pointer was already created

Definition at line 230 of file VirtualStruct.cpp.

◆ setDelete()

Field & etiss::VirtualStruct::Field::setDelete ( std::function< void(Field *)> del )

inline

Definition at line 227 of file VirtualStruct.h.

References delete_.

◆ setDeleteP()

Field * etiss::VirtualStruct::Field::setDeleteP ( std::function< void(Field *)> del )

inline

Definition at line 222 of file VirtualStruct.h.

References delete_.

◆ signalWrite()

void etiss::VirtualStruct::Field::signalWrite ( )

this function should be called if the listener flag is set and the field changed without using the write() function.

write() will automatically call this function if the listener flag is set.

Definition at line 119 of file VirtualStruct.cpp.

◆ write()

void etiss::VirtualStruct::Field::write ( uint64_t val )

function to write bits/a value to the Field.

may only be called if the W flag is set. additional bits are silently discarded if the targt field has less than 64 bits. e.g. int64_t write_target = (int32_t) write_uint64_t;

Definition at line 82 of file VirtualStruct.cpp.

Referenced by etiss::plugin::VirtualStructMemory::write().

Here is the caller graph for this function:

Member Data Documentation

◆ A

const int etiss::VirtualStruct::Field::A = 16

static

supports advanced fault injection/tracing with the applyAction function

Definition at line 157 of file VirtualStruct.h.

Referenced by etiss::VirtualStruct::applyAction().

◆ accessMode_

const AccessMode etiss::VirtualStruct::Field::accessMode_

Definition at line 184 of file VirtualStruct.h.

◆ bitwidth_

const size_t etiss::VirtualStruct::Field::bitwidth_

width in bits

Definition at line 183 of file VirtualStruct.h.

◆ delete_

std::function<void(Field *)> etiss::VirtualStruct::Field::delete_

Definition at line 221 of file VirtualStruct.h.

Referenced by setDelete(), and setDeleteP().

◆ F

const int etiss::VirtualStruct::Field::F = 8

static

supports fault injection/tracing

Definition at line 156 of file VirtualStruct.h.

Referenced by etiss::VirtualStruct::applyAction(), and etiss::VirtualStruct::update_field_access_rights().

◆ flags_

int etiss::VirtualStruct::Field::flags_

read write flags as specified by the static const int parameters of Field: R,W,L

Definition at line 181 of file VirtualStruct.h.

Referenced by etiss::VirtualStruct::applyAction(), etiss::VirtualStruct::readField(), and etiss::VirtualStruct::update_field_access_rights().

◆ L

const int etiss::VirtualStruct::Field::L = 4

static

supports listener plugins; used for etiss::RegisterDevicePlugins to determine access to a variable/field

Definition at line 154 of file VirtualStruct.h.

Referenced by etiss::VirtualStruct::addField(), addListener(), etiss::VirtualStruct::allocateFromC(), and etiss::CPUArchRegListenerInterface::signalChangedRegisterValue().

◆ lapplyBitflip

std::function<bool(unsigned position, uint64_t fault_id)> etiss::VirtualStruct::Field::lapplyBitflip

if this function is set the the default implementation of applyBitflip will use it

Definition at line 218 of file VirtualStruct.h.

◆ listeners

std::set<std::pair<Listener *, std::shared_ptr<Listener> >, listener_pair_compare> etiss::VirtualStruct::Field::listeners

private

Definition at line 245 of file VirtualStruct.h.

◆ lread

std::function<uint64_t()> etiss::VirtualStruct::Field::lread

protected

set this function for reads in case of AccessMode::LAMBDA / AccessMode::PREFER_LAMBDA

Definition at line 211 of file VirtualStruct.h.

◆ lwrite

std::function<void(uint64_t)> etiss::VirtualStruct::Field::lwrite

protected

set this function for writes in case of AccessMode::LAMBDA / AccessMode::PREFER_LAMBDA

Definition at line 214 of file VirtualStruct.h.

◆ name_

const std::string etiss::VirtualStruct::Field::name_

name of the field.

should be a simple/easy to parse name. e.g. representing the "SR" OR1K CPU register: SPR[0][17]

Definition at line 177 of file VirtualStruct.h.

Referenced by RegField_RV32IMACFD::_write(), pcField_RV32IMACFD::_write(), RegField_RV64IMACFD::_write(), pcField_RV64IMACFD::_write(), etiss::VirtualStruct::addField(), etiss::plugin::VirtualStructMemory::write(), and LegacyRegisterDevicePluginListener::write().

◆ P

const int etiss::VirtualStruct::Field::P = 32

static

private field: this flag indicates that this field is an implementation specific field that e.g.

is not to be copied by etiss::copy()

Definition at line 158 of file VirtualStruct.h.

Referenced by etiss::VirtualStruct::allocateFromC(), etiss::copy(), etiss::CPUCore::CPUCore(), and etiss::parseName().

◆ parent_

VirtualStruct& etiss::VirtualStruct::Field::parent_

reference to parent virtual struct

Definition at line 176 of file VirtualStruct.h.

Referenced by RegField_RV32IMACFD::_read(), pcField_RV32IMACFD::_read(), RegField_RV64IMACFD::_read(), pcField_RV64IMACFD::_read(), etiss::VirtualStruct::FieldT< structT, retT, field >::_read(), RegField_RV32IMACFD::_write(), pcField_RV32IMACFD::_write(), RegField_RV64IMACFD::_write(), pcField_RV64IMACFD::_write(), and etiss::VirtualStruct::FieldT< structT, retT, field >::_write().

◆ prettyname_

const std::string etiss::VirtualStruct::Field::prettyname_

alternative/human readable name of the field.

e.g. representing the "SR" OR1K CPU register: "SR" or "SupervisorRegister"

Definition at line 179 of file VirtualStruct.h.

Referenced by etiss::VirtualStruct::addField(), and etiss::plugin::VirtualStructMemory::write().

◆ R

const int etiss::VirtualStruct::Field::R = 1

static

read flag

Definition at line 151 of file VirtualStruct.h.

Referenced by etiss::VirtualStruct::addField(), etiss::VirtualStruct::allocateFromC(), etiss::CPUCore::CPUCore(), and etiss::VirtualStruct::readField().

◆ RW

const int etiss::VirtualStruct::Field::RW = R | W

static

flags to signal that a field supports read and write operations

Definition at line 153 of file VirtualStruct.h.

◆ W

const int etiss::VirtualStruct::Field::W = 2

static

write flag

Definition at line 152 of file VirtualStruct.h.

Referenced by etiss::VirtualStruct::addField(), etiss::VirtualStruct::allocateFromC(), etiss::copy(), and etiss::CPUCore::CPUCore().

◆ width_

const size_t etiss::VirtualStruct::Field::width_

width in bytes (rounded up if neccessary)

Definition at line 182 of file VirtualStruct.h.

Referenced by etiss::plugin::VirtualStructMemory::VirtualStructMemory().

The documentation for this class was generated from the following files:

/home/runner/work/etiss/etiss/include/etiss/VirtualStruct.h
/home/runner/work/etiss/etiss/src/VirtualStruct.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ AccessMode

Constructor & Destructor Documentation

◆ Field() [1/2]

◆ Field() [2/2]

◆ ~Field()

Member Function Documentation

◆ _applyAction()

◆ _applyBitflip()

◆ _read()

◆ _write()

◆ addListener()

◆ applyAction()

◆ applyBitflip()

◆ read()

◆ removeListener()

◆ setDelete()

◆ setDeleteP()

◆ signalWrite()

◆ write()

Member Data Documentation

◆ A

◆ accessMode_

◆ bitwidth_

◆ delete_

◆ F

◆ flags_

◆ L

◆ lapplyBitflip

◆ listeners

◆ lread

◆ lwrite

◆ name_

◆ P

◆ parent_

◆ prettyname_

◆ R

◆ RW

◆ W

◆ width_
