Classes
class	etiss::Initializer
	Wrapper for the initialize and shutdown of the ETISS environment. More...

Functions
std::set< std::string >	etiss::listCPUArchs ()
	Create a set with all identifier names of the known CPUArch plug-ins.

std::set< std::string >	etiss::listJITs ()
	Create a set with all identifier names of the known JIT plug-ins.

std::set< std::string >	etiss::listPlugins ()
	Create a set with all identifier names of the known plug-ins.

void	etiss::preloadLibraries ()
	Search and try to load libraries.

std::shared_ptr< JIT >	etiss::getJIT (std::string name, std::map< std::string, std::string > options=std::map< std::string, std::string >())
	Get a present JIT plug-in by name.

std::shared_ptr< CPUArch >	etiss::getCPUArch (std::string name, std::map< std::string, std::string > options=std::map< std::string, std::string >())
	Get a present CPUArch plug-in by name.

std::shared_ptr< Plugin >	etiss::getPlugin (std::string name, std::map< std::string, std::string > options=std::map< std::string, std::string >())
	Get a present Plugin plug-in by name.

bool	etiss::loadLibrary (std::string path, std::string name)
	Load a library.

void	etiss::addLibrary (std::shared_ptr< etiss::LibraryInterface > libInterface)
	Add a LibraryInterface to the ETISS environment.

std::set< std::string >	etiss::listLibraries ()
	Create a set with strings of the library names and some information appended in square brackets.

std::set< std::string >	etiss::listLibraryPrefixes ()
	Create a set with strings of the library names.

void	etiss::initialize (std::vector< std::string > &args)
	Initialize and configure ETISS.

std::shared_ptr< etiss::JIT >	etiss::getDefaultJIT ()
	Get the default JIT implementation.

void	etiss::initialize_virtualstruct (std::shared_ptr< etiss::CPUCore > cpu_core)
	Initialize and configure etiss::VirtualStruct root with etiss::CPUCore `cpu_core`.

void	etiss::initialize_virtualstruct (std::shared_ptr< etiss::CPUCore > cpu_core, std::function< bool(const etiss::fault::Fault &, const etiss::fault::Action &, std::string &)> const &fcustom_action)
	Extension of etiss::initialize_virtualstruct( std::shared_ptr<etiss::CPUCore>) to allow direct setting of custom action for `cpu_core` etiss::VirtualStruct with `fcustom_action`.

void	etiss::shutdown ()
	Shutdown ETISS.

std::string	etiss::errorMessage (etiss::int32 code, CPUArch *arch=0)
	Get the error message for an error code for a specific CPUArch plug-in.

Detailed Description

Function Documentation

◆ addLibrary()

void etiss::addLibrary ( std::shared_ptr< etiss::LibraryInterface > libInterface )

Add a LibraryInterface to the ETISS environment.

Before a library can be use within ETISS the library needs to be added to ETISS.

Parameters

interface Pointer to the LibraryInterface of the library to be added.

See also: LibraryInteface.h

Definition at line 283 of file ETISS.cpp.

References etiss_defaultjit_, etiss_libraries_, etiss_libraries_mu_, and etiss::forceInitialization().

Referenced by etiss_initialize(), and etiss::loadLibrary().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ errorMessage()

std::string etiss::errorMessage	(	etiss::int32	code,
		CPUArch *	arch = `0`
	)

Get the error message for an error code for a specific CPUArch plug-in.

Todo:: add error message interface to etiss::CPUArch

TODO: cpu arch error message function

Definition at line 1041 of file ETISS.cpp.

References etiss::CPUArch::getName().

Here is the call graph for this function:

◆ getCPUArch()

std::shared_ptr< CPUArch > etiss::getCPUArch	(	std::string	name,
		std::map< std::string, std::string >	options = `std::map<std::string, std::string>()`
	)

Get a present CPUArch plug-in by name.

Parameters

name	String of the plug-in name.
options	A key value map with the options required to load the plug-in.

Returns: Pointer to the plug-in.

Definition at line 179 of file ETISS.cpp.

References etiss::ERROR, etiss_libraries_, etiss_libraries_mu_, etiss::log(), and options.

Referenced by etiss::CPUCore::create().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getDefaultJIT()

std::shared_ptr< etiss::JIT > etiss::getDefaultJIT ( )

Get the default JIT implementation.

The default JIT implementation, is the first loaded JIT plug-in.

Returns: Pointer to the JIT plug-in.

Definition at line 326 of file ETISS.cpp.

References etiss_defaultjit_, and etiss::getJIT().

Referenced by etiss::Initializer::loadIniJIT().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getJIT()

std::shared_ptr< JIT > etiss::getJIT	(	std::string	name,
		std::map< std::string, std::string >	options = `std::map<std::string, std::string>()`
	)

Get a present JIT plug-in by name.

Parameters

name	String of the plug-in name.
options	A key value map with the options required to load the plug-in.

Returns: Pointer to the plug-in.

Definition at line 135 of file ETISS.cpp.

References etiss::ERROR, etiss_libraries_, etiss_libraries_mu_, etiss::log(), and options.

Referenced by etiss::getDefaultJIT(), and etiss::Initializer::loadIniJIT().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPlugin()

std::shared_ptr< Plugin > etiss::getPlugin	(	std::string	name,
		std::map< std::string, std::string >	options = `std::map<std::string, std::string>()`
	)

Get a present Plugin plug-in by name.

Parameters

name	String of the plug-in name.
options	A key value map with the options required to load the plug-in.

Returns: Pointer to the plug-in.

Definition at line 223 of file ETISS.cpp.

References etiss::ERROR, etiss_libraries_, etiss_libraries_mu_, etiss::INFO, etiss::log(), and options.

Referenced by etiss::Initializer::loadIniPlugins().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initialize()

void etiss::initialize ( std::vector< std::string > & args )

Initialize and configure ETISS.

Attention: It is recommended to use etiss::Initializer instead of calling etiss::initialize / etiss::shutdown manually

Definition at line 877 of file ETISS.cpp.

References etiss_initialize().

Referenced by etiss::Initializer::Initializer(), etiss::Initializer::Initializer(), etiss::Initializer::Initializer(), etiss::Initializer::Initializer(), and etiss::Initializer::Initializer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initialize_virtualstruct() [1/2]

void etiss::initialize_virtualstruct ( std::shared_ptr< etiss::CPUCore > cpu_core )

Initialize and configure etiss::VirtualStruct root with etiss::CPUCore cpu_core.

This function also initializes configured faults which require a mounted core etiss::VirtualStruct. Add the virtual structure of the cpu to the VirtualStruct root. This allows to access the field of the cpu from a global context. See etiss::VirtualStruct::getVirtualStruct() and etiss::VirtualStruct::getResolvedField(). In this case e.g. the instructionPointer can be read from a global context by calling etiss::VirtualStruct::root()->getResolvedField("core0.instructionPointer") ->read().

Definition at line 910 of file ETISS.cpp.

References etiss::cfg(), etiss::FATALERROR, etiss::Configuration::get(), etiss::fault::Stressor::loadXML(), etiss::log(), etiss::VirtualStruct::root(), etiss::split(), and etiss::VERBOSE.

Referenced by etiss::initialize_virtualstruct(), and main().

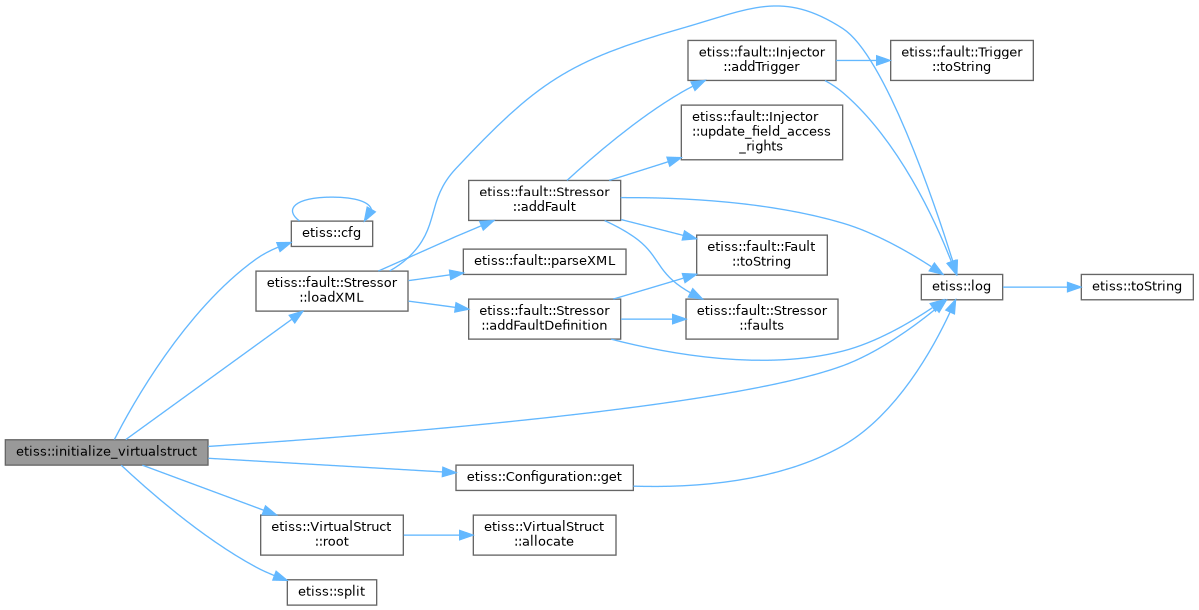

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initialize_virtualstruct() [2/2]

void etiss::initialize_virtualstruct	(	std::shared_ptr< etiss::CPUCore >	cpu_core,
		std::function< bool(const etiss::fault::Fault &, const etiss::fault::Action &, std::string &)> const &	fcustom_action
	)

Extension of etiss::initialize_virtualstruct( std::shared_ptr<etiss::CPUCore>) to allow direct setting of custom action for cpu_core etiss::VirtualStruct with fcustom_action.

Definition at line 956 of file ETISS.cpp.

References etiss::initialize_virtualstruct().

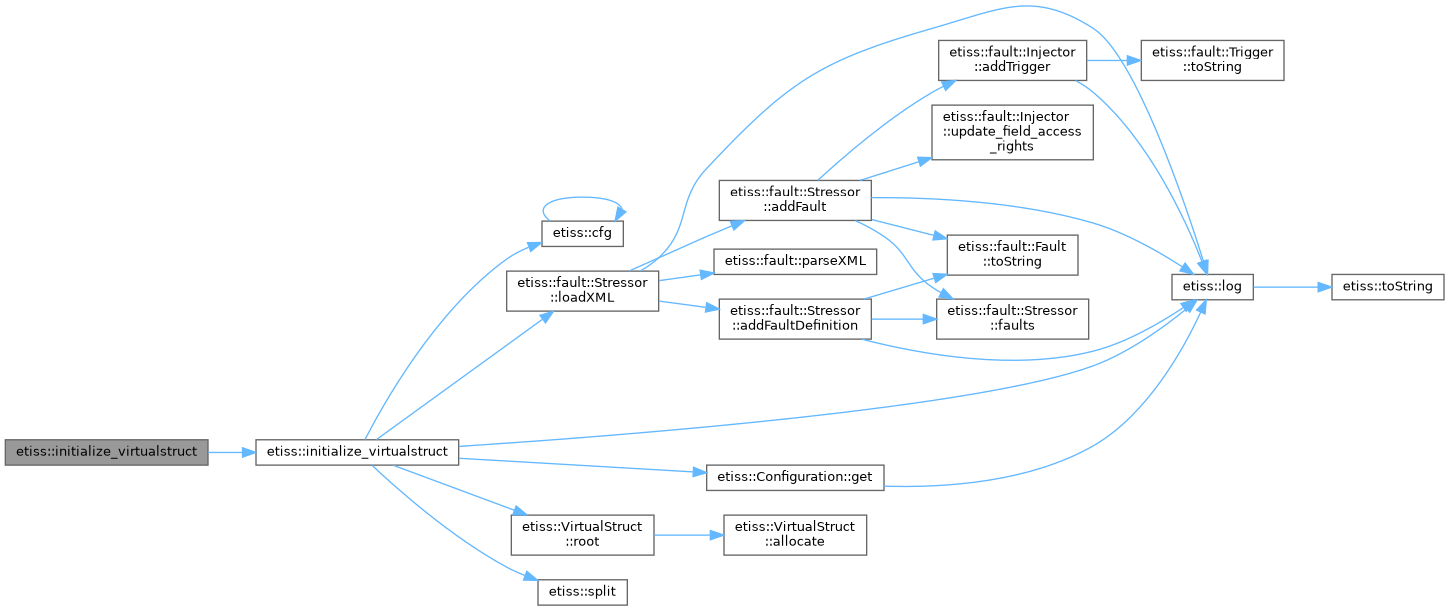

Here is the call graph for this function:

◆ listCPUArchs()

std::set< std::string > etiss::listCPUArchs ( )

Create a set with all identifier names of the known CPUArch plug-ins.

See also: CPUArch

Returns: A set with the identifier strings.

Definition at line 51 of file ETISS.cpp.

References etiss::ERROR, etiss_libraries_, etiss_libraries_mu_, and etiss::log().

Here is the call graph for this function:

◆ listJITs()

std::set< std::string > etiss::listJITs ( )

Create a set with all identifier names of the known JIT plug-ins.

See also: JIT

Returns: A set with the identifier strings.

Definition at line 79 of file ETISS.cpp.

References etiss::ERROR, etiss_libraries_, etiss_libraries_mu_, and etiss::log().

Here is the call graph for this function:

◆ listLibraries()

std::set< std::string > etiss::listLibraries ( )

Create a set with strings of the library names and some information appended in square brackets.

Note: Use etiss::listLibraryPrefixes to get the raw library names.

Returns: A set with the strings.

Definition at line 304 of file ETISS.cpp.

References etiss_libraries_, and etiss_libraries_mu_.

◆ listLibraryPrefixes()

std::set< std::string > etiss::listLibraryPrefixes ( )

Create a set with strings of the library names.

The library names are also required to be used as prefixes to symbols (library name + '_': e.g. ETISSINCLUDED_exportedSymbol).

Returns: A set with the strings.

Definition at line 315 of file ETISS.cpp.

References etiss_libraries_, and etiss_libraries_mu_.

◆ listPlugins()

std::set< std::string > etiss::listPlugins ( )

Create a set with all identifier names of the known plug-ins.

See also: Plugin

Returns: A set with the identifier strings.

Definition at line 107 of file ETISS.cpp.

References etiss::ERROR, etiss_libraries_, etiss_libraries_mu_, and etiss::log().

Here is the call graph for this function:

◆ loadLibrary()

bool etiss::loadLibrary	(	std::string	path,
		std::string	name
	)

Load a library.

The library needs to be an implementation of etiss::CPUArch, etiss::JIT or etiss::Plugin. A Library interface is created for the library with etiss::LibraryInterface::openSharedLibrary and added to the ETISS environment with etiss::addLibrary.

Parameters

path	String of the library location. E.g. "/path/to/lib"
name	String of the library name. The library name is the file name of the library without the lib prefix and the file extension. E.g. for libOR1KArch.so the name is OR1KArch.
