etiss::MemoryManipulationSystem Class Reference

Simple etiss:System implementation for testing. More...

#include <MemoryManipulationSystem.h>

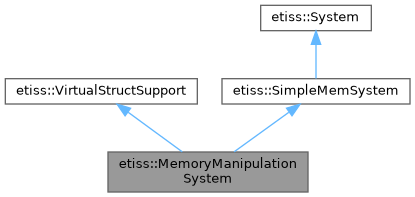

Inheritance diagram for etiss::MemoryManipulationSystem:

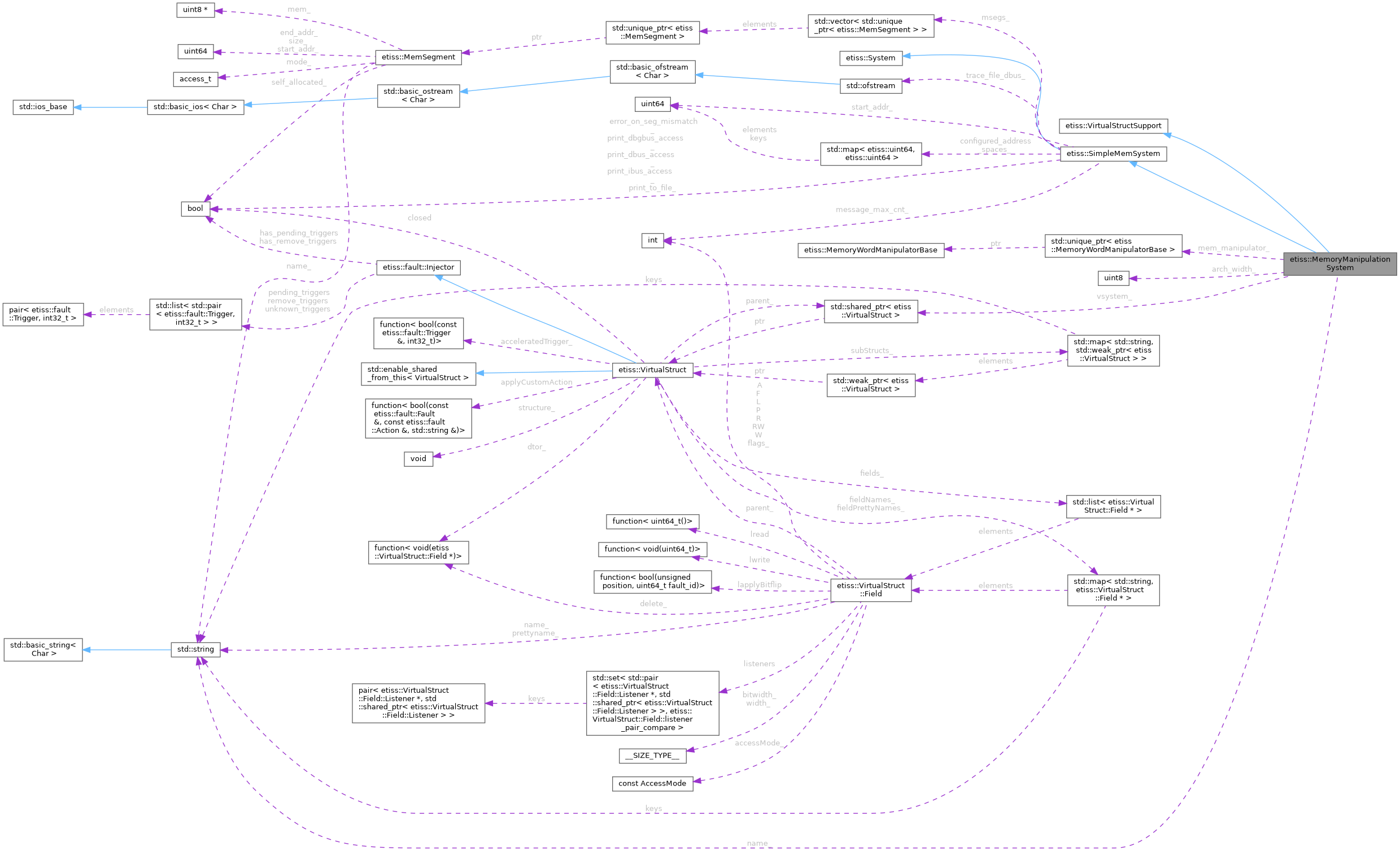

Collaboration diagram for etiss::MemoryManipulationSystem:

Public Member Functions
	MemoryManipulationSystem (const std::string &name="system")
	Constructor takes name for reference of this class as a name Injector.
const std::string &	getName ()
	get virtual struct associated name
std::shared_ptr< etiss::VirtualStruct >	getStruct (void)
	get virtual struct
void	init_manipulation (std::shared_ptr< etiss::VirtualStructSupport > vs_parent)
	initialize this virtual struct and mount it to cpu_core
Public Member Functions inherited from etiss::VirtualStructSupport
virtual	~VirtualStructSupport ()
Public Member Functions inherited from etiss::SimpleMemSystem
	SimpleMemSystem (void)
virtual	~SimpleMemSystem (void)
etiss::int32	iread (ETISS_CPU *cpu, etiss::uint64 addr, etiss::uint32 len)
	Instruction read operation.
etiss::int32	iwrite (ETISS_CPU *cpu, etiss::uint64 addr, etiss::uint8 *buf, etiss::uint32 len)
	Instruction write operation.
etiss::int32	dread (ETISS_CPU *cpu, etiss::uint64 addr, etiss::uint8 *buf, etiss::uint32 len)
	Data read operation.
etiss::int32	dwrite (ETISS_CPU *cpu, etiss::uint64 addr, etiss::uint8 *buf, etiss::uint32 len)
	Data write operation.
etiss::int32	dbg_read (etiss::uint64 addr, etiss::uint8 *buf, etiss::uint32 len)
	Debug read operation.
etiss::int32	dbg_write (etiss::uint64 addr, etiss::uint8 *buf, etiss::uint32 len)
	Debug write operation.
void	syncTime (ETISS_CPU *cpu)
	Synchronize simulation time.
void	init_memory ()
void	load_elf ()
void	load_segments (void)
etiss::uint64	get_startaddr (void)
void	add_memsegment (std::unique_ptr< MemSegment > &mseg, const void *raw_data, size_t file_size_bytes)
Public Member Functions inherited from etiss::System
virtual	~System ()

Private Attributes
std::string	name_
etiss::uint8	arch_width_
std::shared_ptr< etiss::VirtualStruct >	vsystem_
std::unique_ptr< etiss::MemoryWordManipulatorBase >	mem_manipulator_

Additional Inherited Members
Protected Member Functions inherited from etiss::SimpleMemSystem
template<bool write>
etiss::int32	dbus_access (ETISS_CPU *cpu, etiss::uint64 addr, etiss::uint8 *buf, etiss::uint32 len)

Detailed Description

Simple etiss:System implementation for testing.

Definition at line 111 of file MemoryManipulationSystem.h.

Constructor & Destructor Documentation

MemoryManipulationSystem()

MemoryManipulationSystem::MemoryManipulationSystem

(

const std::string &

name = "system"

)

Constructor takes name for reference of this class as a name Injector.

Definition at line 197 of file MemoryManipulationSystem.cpp.

Member Function Documentation

getName()

const std::string & etiss::MemoryManipulationSystem::getName ( )

inlinevirtual

get virtual struct associated name

Implements etiss::VirtualStructSupport.

Definition at line 119 of file MemoryManipulationSystem.h.

References name_.

Referenced by init_manipulation().

Here is the caller graph for this function:

getStruct()

std::shared_ptr< VirtualStruct > MemoryManipulationSystem::getStruct ( void  )

virtual

get virtual struct

Implements etiss::VirtualStructSupport.

Definition at line 25 of file MemoryManipulationSystem.cpp.

References etiss::VirtualStruct::allocate(), and vsystem_.

Referenced by init_manipulation().

Here is the call graph for this function:

Here is the caller graph for this function:

init_manipulation()

void MemoryManipulationSystem::init_manipulation

(

std::shared_ptr< etiss::VirtualStructSupport >

vs_parent

)

initialize this virtual struct and mount it to cpu_core

Definition at line 34 of file MemoryManipulationSystem.cpp.

References etiss::cfg(), etiss::FATALERROR, etiss::Configuration::get(), getName(), getStruct(), etiss::log(), mem_manipulator_, uint8_t, and etiss::VERBOSE.

Referenced by main().

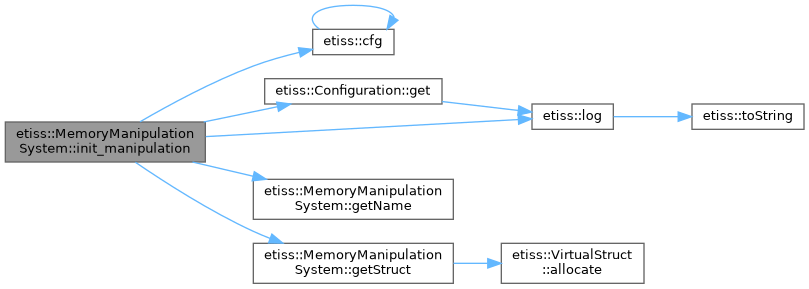

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

arch_width_

etiss::uint8 etiss::MemoryManipulationSystem::arch_width_

private

Definition at line 129 of file MemoryManipulationSystem.h.

mem_manipulator_

std::unique_ptr<etiss::MemoryWordManipulatorBase> etiss::MemoryManipulationSystem::mem_manipulator_

private

Definition at line 131 of file MemoryManipulationSystem.h.

Referenced by init_manipulation().

name_

std::string etiss::MemoryManipulationSystem::name_

private

Definition at line 128 of file MemoryManipulationSystem.h.

Referenced by getName().

vsystem_

std::shared_ptr<etiss::VirtualStruct> etiss::MemoryManipulationSystem::vsystem_

private

Definition at line 130 of file MemoryManipulationSystem.h.

Referenced by getStruct().

---

The documentation for this class was generated from the following files:

• /home/runner/work/etiss/etiss/include/etiss/IntegratedLibrary/fault/MemoryManipulationSystem.h
• /home/runner/work/etiss/etiss/src/IntegratedLibrary/fault/MemoryManipulationSystem.cpp
